4.5: Understand the Concepts of Food Chains, Food Webs, Pyramids of Number, Pyramids of Biomass and Pyramids of Energy Transfer

FOOD CHAINS: Shows the Feeding Relationships Between Living Things (What Eats What in a Habitat)

FOOD CHAINS

Diagram Showing an Example of a Food Chain

EXPLANATION: In the Diagram, the Flower will be the Producer as it is Produces their Own Organic Nutrients through Photosynthesis The Flowers will be Eaten by Snails which are Primary Consumers as they will Eat Plants and are Herbivores The Snails will be Eaten by Frogs which are Secondary Consumers as they are Predators The Frogs will be Eaten by Foxes which are Tertiary Consumers as they are Predators at the Top of the Food Chain

FOOD WEBS: Shows All the Food Chains in an Ecosystem, Showing the Flow of Energy in a Habitat

FOOD WEBS

Diagram Showing an Example of a Food Web

EXPLANATION:     Shows the Food Chains Joined Together: Grass → Insect → Vole → Hawk Grass → Insect → Frog → Fox Grass → Insect → Vole → Fox     Food Webs will Show Interdependence (Change in Population of One Organism     will Affect the Population of Another Organism): If Population of Insects Fall, Population of Vole may Decrease as they will Have Less Insects to Feed on so will Starve and Die If Population of Rabbits Increase, Population of Fox may Increase as they will Have More Rabbits to Feed on so will Increase Chances of Survival

PYRAMIDS OF NUMBERS: Shows the Population of Each Organism at Each Trophic Level in a Food Chain

PYRAMIDS OF NUMBERS

Diagram Showing an Example of a Pyramid of Numbers

EXPLANATION: The Bars represents the Population so Wider the Bar, the Larger the Population The Producer will Always be at the Bottom Energy is Lost to the Surroundings from One Trophic Level to the Next so there are usually Fewer Organisms at Each Trophic Level (Less Chances of Survival) But Sometimes May Not Look like a Pyramid as One Large Producer can Feed Many Small Consumers (E.g One Oak Tree can Feed many Insects)

PYRAMIDS OF BIOMASS Shows the Transfer of Energy at Each Trophic Level by Calculating the Dry Mass of Each Population of Species

PYRAMIDS OF BIOMASS

Diagram Showing an Example of a Pyramid of Biomass

EXPLANATION: Biomass is the Mass of Living Material in Each Organism Multiplied by their Population at Each Trophic Level Pyramids of Biomass will Always Look like a Pyramid as Biomass is a Measure of the Amount of Food Available, this Decreases from One Trophic Level to the Next as Energy is Lost to Respiration, Not Digested or Not Eaten

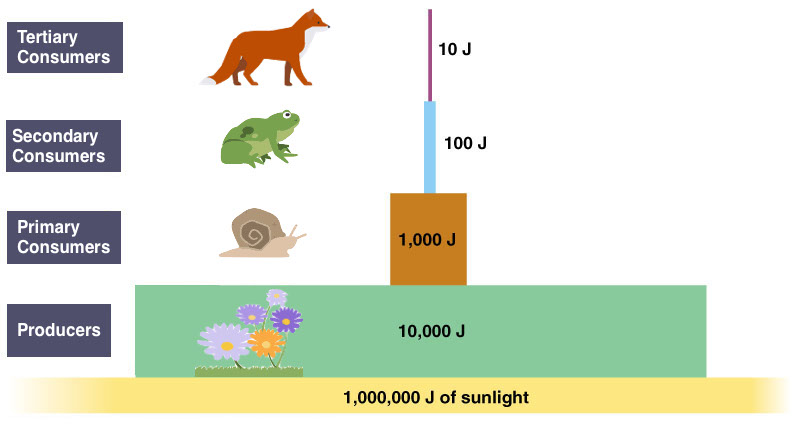

PYRAMIDS OF ENERGY TRANSFER: Shows the Transfer of Energy at Each Trophic Level from One Trophic Level to the Next

PYRAMIDS OF ENERGY TRANSFER

Diagram Showing an Example of a Pyramid of Energy Transfer

EXPLANATION: Each Trophic Level Reduces the Amount of Energy Available for the Next  as Only 10% of Energy is Passed On Energy is Lost to Respiration, May Not be Digested or May Not be Eaten, Causing the Availability of Energy to be Passed on to Decrease This results to a Limit of Trophic Levels in a Food Chain
